Polycarbonate Air Ventilator Base Plates

Polycarbonate Air Ventilator Base Plates
Polycarbonate Air Ventilator Base Plates
Send Inquiry
Product Code : PAVBP 01
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price
  • 3600 INR
Product Specifications
  • Weight
  • 6 Kilograms (kg)
  • Height
  • 18 Inch (in)
  • Width
  • 31 Inch (in)
  • Size
  • 24 Inch
  • Material
  • Aluminum
  • Type
  • Industrial
  • Usage
  • Warehouses, Factory
Product Description

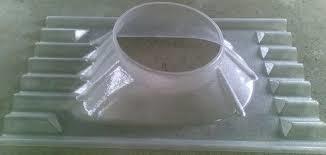

Polycarbonate Air Ventilator Base Plates

Polycarbonate Base Plate:
  • It gives 4 times the life of FRP base Plates. We provide 10 years limited warranty.
  • Virtually Unbreakable and Design Freedom.
  • UV Resistant & Temperature resistant (-40C to +130 C). Compared to FRP, PC base plates have minimal thermal expansion and contraction, which prevents cracks in long run.
  • Light Transmission Transmits light up to 89%.
Features:
  • Fire Retardant
  • Maintenance free
  • Available in 20, 22, and 24 Diameter
  • Our expertise in roofing products enables us to design base plates matching with Metal sheet precision, thus eliminating the possibility of leakage
  • Further we have successfully installed Ventilators on Multiwall Polycarbonate roofs as well.
Technical Specifications:



MOC of Vanes

Industrial Grade Aluminum - 8011

MOC of Top Plate

SS 304

MOC of Bottom Ring

SS 304

weight of ventilator

6 Kg.

Height of ventilator

410mm‚ 5mm

Center Width of Ventilator

735mm‚ 5mm

Dia of Top Plate

500mm‚ 5mm

Dia of Bottom

600mm, 5mm

Nos of Vanes

42 Nos. Rolled formed

Thickness of Vanes

0.45mm

Bearing Type

SKF - 6001 ZZ Permanently Lubricated & Sealed

Rivets

Aluminum Alloy with Washer

Polycarbonate Sheet

2mm Thickness X 1.8m X 1m

Mat

450GSM

Dome Height

18 Inch



Trade Information
  • Supply Ability
  • 20 Piece Per Day
  • Delivery Time
  • 2 Days
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Standard
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • East India, Mizoram, Arunachal Pradesh, Assam, Manipur, Meghalaya, Bihar, Jharkhand, All India
