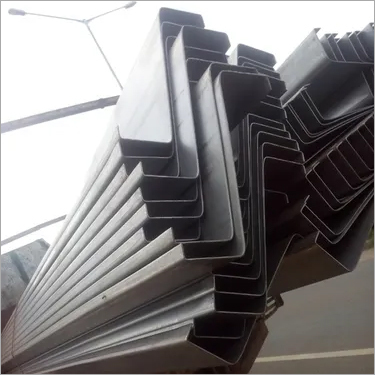

C Z Purlins

C Z Purlins
C Z Purlins
Product Code : PR 16
Brand Name : PIONEER ROOFING WORKS
Product Description

We are the manufacturers leading supplier of C & Z Purlin since 2006. This purlins are manufactured using high quality metal alloy and innovative technology by vendors' deft technocrats. The offered purlin is widely used in factories, warehouses, workshops and various other industrial sheds. Moreover, the provided C & Z Purlin can be availed from us in various designs and sizes.

Features:

  • Easy installation
  • Rugged design
  • Sturdy construction
  • Less maintenance

Technical Specifications:

  • Wind load = 150 kg/cm,2 fy=24on/mm2
  • Yield stress of zincalume sheet = 5500 kg/cm2
  • Yield stress of ac sheet & colour coated = 2400 kg/crn2
  • Slope 10 deg to 14 deg

SP/IN

Colour Coated Roofings

Galvalume Roofing

Sag Rods

IN MM

(AT 1.60M)

(AT 1.80M)

(AT 1.4M)

4.5

2180 x 2.0

2180 x 2.0

NIL

5.0

2180 x 2.0

2180 x 2.0

NIL

5.5

2200 x 2.0

2200 x 2.0

NIL

6.0

2200 x 2.3

2200 x 2.3

1 NO

6.5

2230 x 2.0

2200 x 2.3

1 NO

7.0

2230 x 2.5

2230 x 2.0

1 NO

7.5

2230 x 2.5

2230 x 2.3

1 NO

8.0

2250 x 2.3

2250 x 2.5

2 NO

8.5

2250 x 2.5

2250 x 2.5

2 NO

9.0

2250 x 2.5

2250 x 2.5

2 NO

Thickness

1.5mm
2.5mm

Length

Upto 12 mtrs.

Web Height

100mm
300mm

Flange Width

35mm - 65mm

Material

HR steel/CR Steel/GL steel(120gsm-275gsm) as per Indian and International standers

Standard Tolerances on HR. From Metal section

Material Accuracy Grade

H.R

Cross Section Dimension Inside Radius of Bend

+/- 2MM

Angular Dimension

+/-2.5*

Material Thickness (% of Thick)

-15%

Bend / Twist Warpose

2mm/mtr.

End Flaw (in 300mm at Ends)

3mm

Cutting Length

+5mm

Punching Dimension

+/-1mm

Punching Pitch

+/1mm

Ref. To Punching and Cutting

+/-5mm

Inside Radius in H.R. Profile

2x1 Regular
15x1 Exceptional
1x1 Subject to Approval
From Manufacturers
(t=Thickness of Material)

 We now look forward to your valued order. Should you require any further clarification / assistance please feel free to contact us any time.

Trade Information
  • Delivery Time
  • 3-4 Days
  • Main Domestic Market
  • West Bengal, Jharkhand, Bihar, East India
